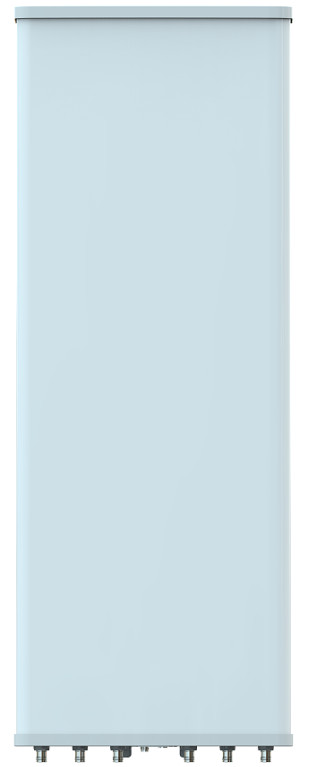

T2008L6R022
TDD : XXXXPol 3300~3800MHz BCH 65° 16.5dBi 2~12° Beamforming
FDD : XXXXXXPol 698~960MHz×2/1427~2690MHz×2/ 1710~2690MHz×2 65°/65°/65°16.5/17.5/17.5dBi 2°
~12°/2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna
Product Features

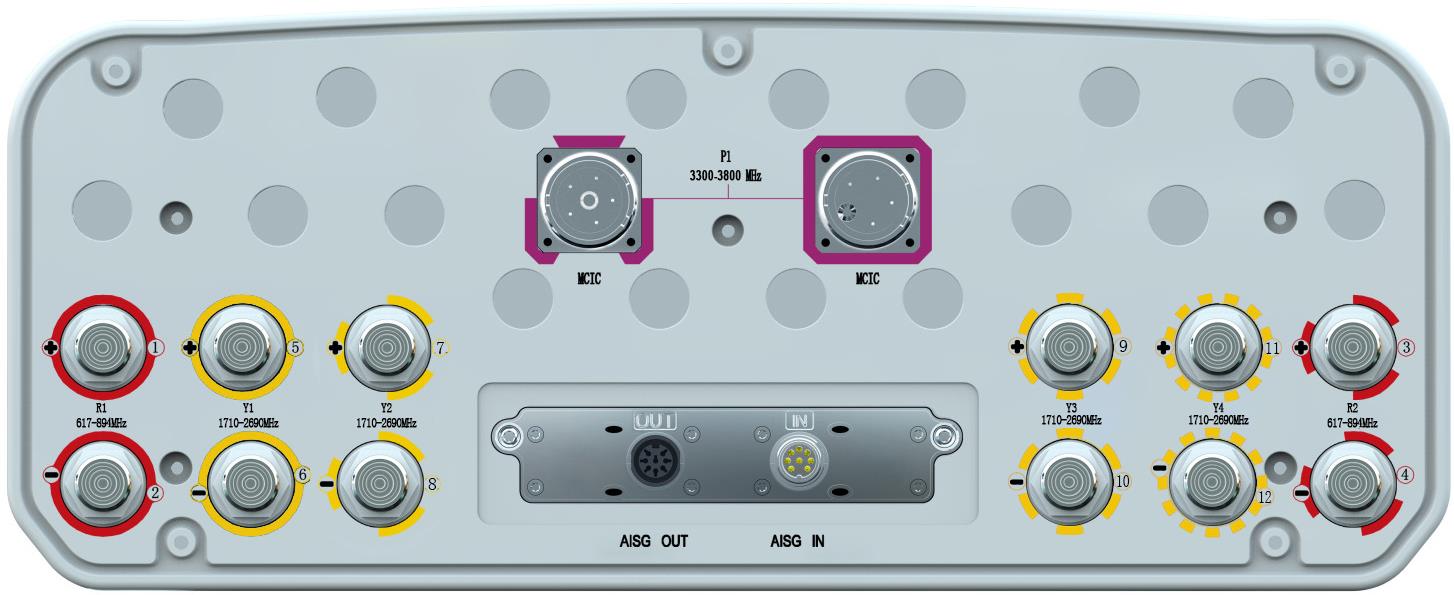

- Uses MQ4/MQ5 cluster connectors for the beam-forming array, including eight RF ports plus one calibration port
- Single integrated and field replaceable RCU provide up to 10 RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP
- Hybrid FDD + TDD beamforming within a radome
