Specialized antenna systems that provide both coverage and control are becoming more and more important to network efficiency. We at Tongyu Communication are dedicated to developing sector antenna solutions that meet the operating requirements of our customers. We accomplish this through innovative design and accurate engineering. This method is demonstrated by our T2006L6R013 model, which allows telecommunications operators to have greater control and flexibility over their network architecture. We manufacture these sector antenna systems with the goal of providing consistent performance in communication conditions that are challenging.

Advanced Control Capabilities

The T2006L6R013 incorporates two integrated and field-replaceable Remote Control Units (RCUs) that support up to 10 Remote Electrical Tilts (RETs). This configuration enables independent electrical tilt control for each array, allowing network operators to optimize coverage patterns without physical adjustments. The system's compliance with AISG and 3GPP standards ensures interoperability with existing network management systems. These control features represent significant advancements in sector antenna technology, providing operational flexibility for modern networks.

Frequency Performance and Configuration

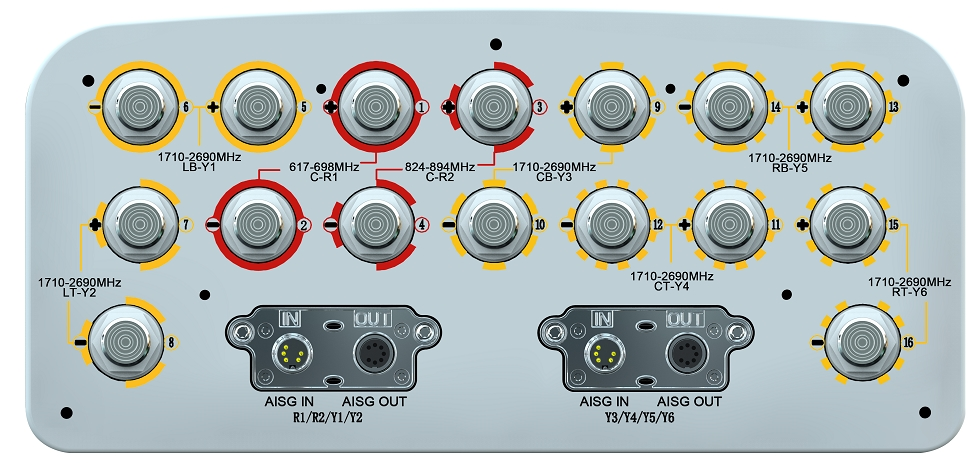

This sector antenna model features two ports covering 617-698MHz and two ports covering 824-894MHz, with diplexed cross-polarized arrays in the high band (671-894MHz). This configuration supports independent tilt operation across frequency bands, enabling precise optimization of coverage and capacity. The arrangement allows network operators to address specific coverage requirements while maintaining signal quality and performance standards. These technical characteristics make this sector antenna suitable for complex network environments requiring multi-band operation.

Compliance and Operational Benefits

A smooth integration into the existing network infrastructure is guaranteed by the fact that the antenna is in conformity with both AISG and 3GPP standards. The design of the field-replaceable RCU minimizes the amount of maintenance that is required as well as the expenses of operations, and the independent tilt capability makes it possible to optimize the network with a high degree of accuracy. These attributes are evidence of our dedication to developing solutions for sector antennas that incorporate both technological innovation and real-world operational benefits for telecommunications operators.

Antennas like the Tongyu T2006L6R013 show how seriously we take the challenge of meeting the ever-changing demands of network operators with cutting-edge technology. Our technologies improve network efficiency and coverage quality by integrating advanced control capabilities with strong frequency performance. We provide telecom operators with sector antenna devices that are both technically capable and operationally flexible, allowing them to optimize the performance of their networks. To this day, we have not stopped working on engineering solutions that will help communication networks become faster and more reliable.
