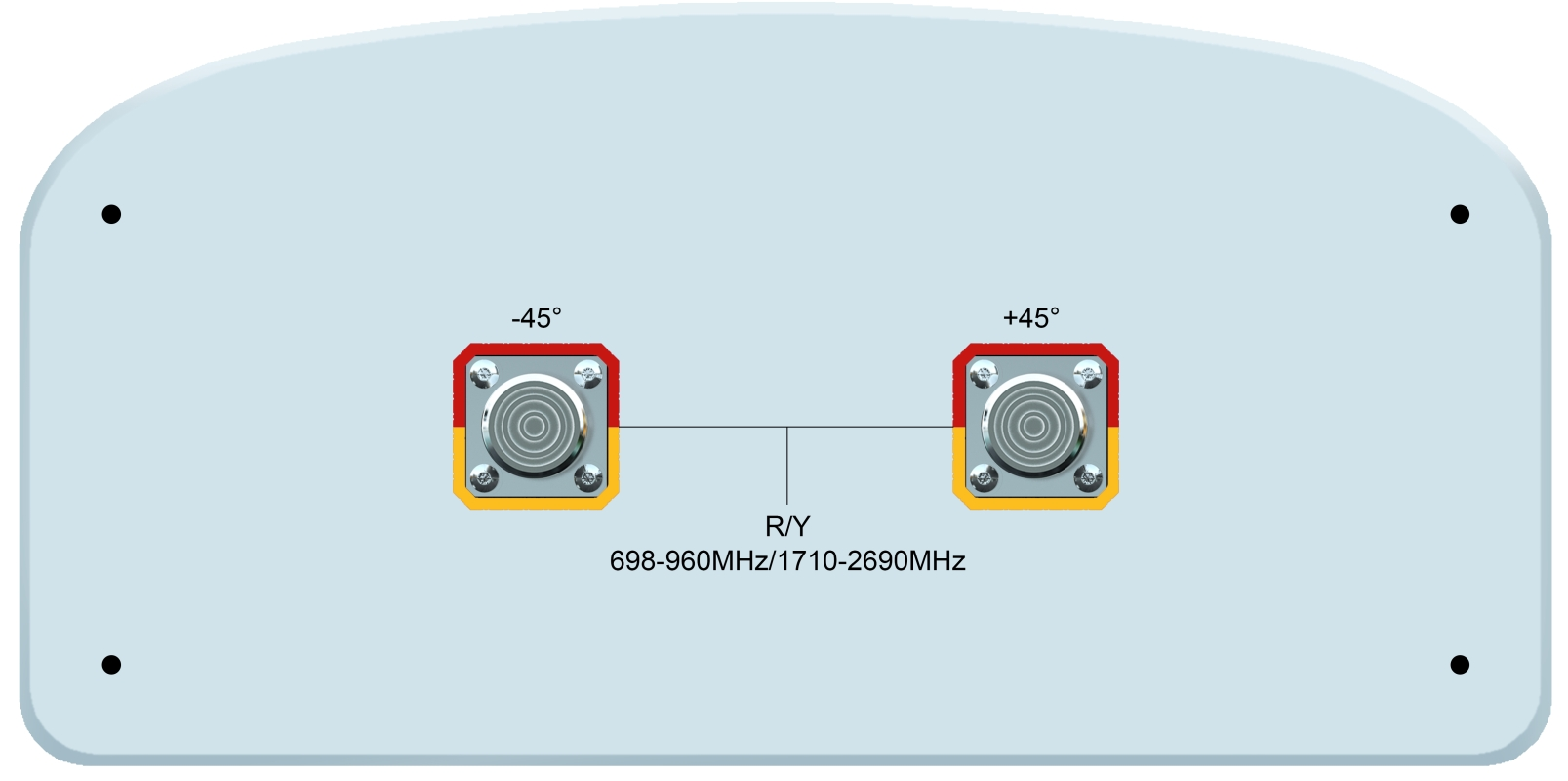

As a globally renowned antenna factory, Tongyu stands at the forefront of telecommunications innovation. Our commitment to precision engineering and cutting-edge R&D delivers solutions like the T1001W6F031, a high-performance dual-band antenna designed for modern 5G/4G networks. Operating seamlessly across 698–960MHz and 1710–2690MHz, this XXPol (±45°) polarized antenna features an integrated combiner, streamlining deployments while enhancing signal integrity and network efficiency.

Technical Capabilities Defining Performance

The T1001W6F031 sets industry benchmarks with its robust electrical specifications. It achieves exceptional gain values, ranging from 11.5dBi ±0.4 in the 698-803MHz band to a peak of 15dBi ±0.5 at 2300-2690MHz. Precision beam control is delivered via optimized horizontal (58°–69°) and ultra-narrow vertical beamwidths (11.5°±1 to 28°±4), ensuring focused coverage and minimized interference. Critical stability metrics include VSWR <1.5, intermodulation (IM3) ≤-150dBc, and >25dB front-to-back ratio, guaranteeing reliable operation even under maximum 150W power loads at 50°C. Cross-polar discrimination exceeding 15dB (±60°) further enhances MIMO performance in dense urban environments.

Integrated Design for Operational Efficiency

Tongyu's engineering ingenuity shines in the antenna's combiner-integrated architecture. This design significantly reduces site footprint, installation complexity, and associated costs. The fixed 0° electrical downtilt eliminates mechanical adjustment needs, enabling rapid, consistent deployments ideal for large-scale network rollouts. Horizontal beamwidth consistency (65°±4 in low-band, 58°±5 in high-band) ensures broad, uniform coverage across diverse terrains while maintaining isolation ≥21dB for optimal spectral efficiency.

Manufacturing Excellence at Scale

Our ISO-certified antenna factory in Guangdong exemplifies industrial rigor. Leveraging automation and AI-driven quality control, Tongyu ensures every T1001W6F031 unit undergoes rigorous testing under extreme conditions, adhering to 3GPP, ETSI, FCC, CE, and RoHS standards. This vertically integrated production process—from design to validation—guarantees 24/7 reliability and scalability, supporting global carrier demands with annual outputs exceeding 500,000 units.

Conclusion

Choosing this antenna factory means investing in sustainable, high-performance infrastructure. The T1001W6F031 offers exceptional versatility, supporting 700MHz 5G, LTE, and legacy technologies across six sub-bands. Its combiner integration lowers OPEX through reduced hardware and power consumption, while future-proof compliance ensures seamless integration into evolving networks. Tongyu empowers operators to deliver unmatched connectivity—where innovation meets unwavering quality.

Experience the Tongyu Advantage: Powering connectivity, everywhere.
