T2006M6R033
TDD : XXXXPol 2300~2690MHz/3300~3800MHz BCH 65°/65° 17/17dBi 2~12°/2~12° Beamforming
FDD : XXXXPol 698~960MHz×2/1427~2690MHzx2 65°/65° 15/18 dBi 2~12°/2~12° Integrated and replaceable RCU (Remote Control Unit) Antenna
Product Features

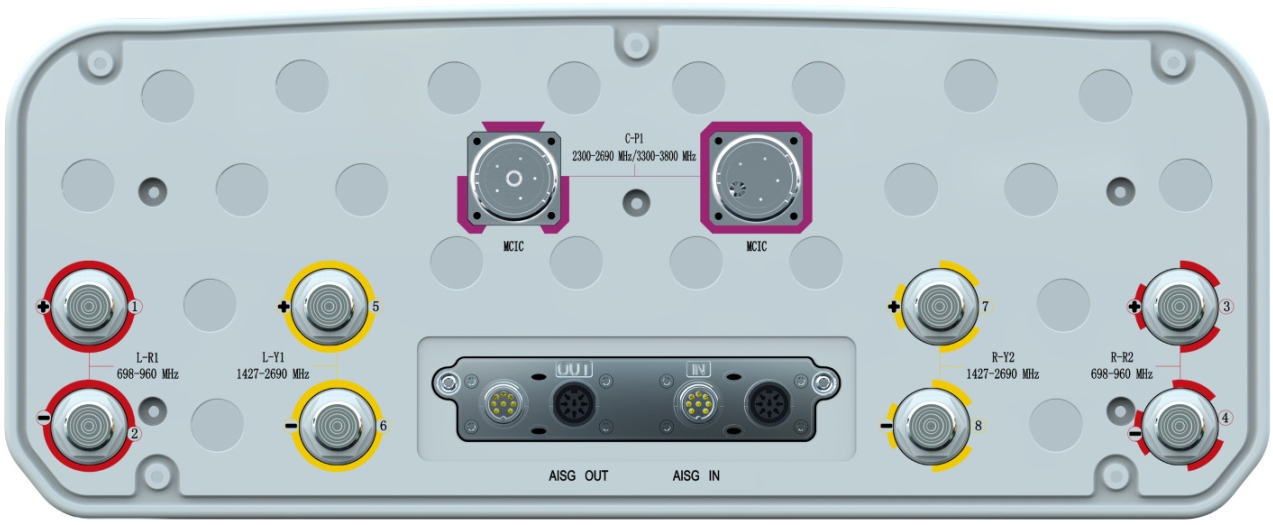

- Uses MQ4/MQ5 cluster connectors for the beam-forming array, including eight RF ports plus one calibration port
- Single integrated and field replaceable RCU provide up to 10 RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP
- Calibration Port functionality for precise steering performance
