T2006L6R013
XXXXXXXXPol 617~698MHz/824~894MHz/1710~2690MHz×6 65°/65°/65° 15/16/17.7dBi 2° ~10°/2°~10°/2°~12° Integrated RCU (Remote Control Unit) Antenna
Product Features
- Extended spectrum compliance for 617-894 MHz

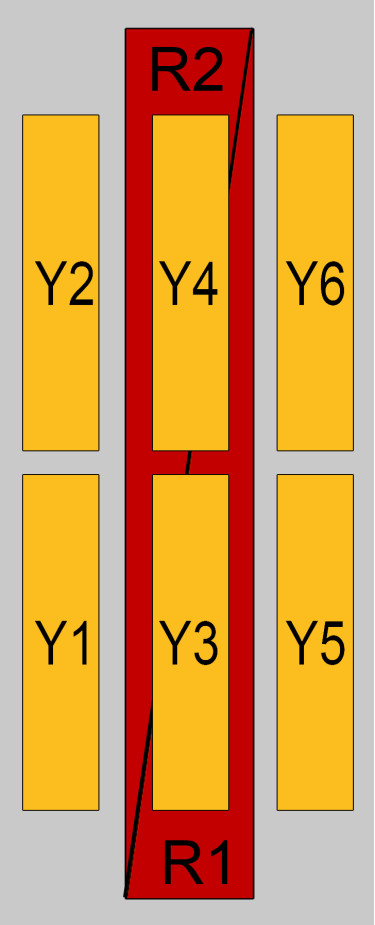

- Includes 1 cross polarization arrays(duplexed 4ports) for low band(617-698MHz),6 cross polarization arrays(12ports) for high band(1710-2690MHz)
- Uses the new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
- 2 integrated and field replaceable RCUs provide up to 10 RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP

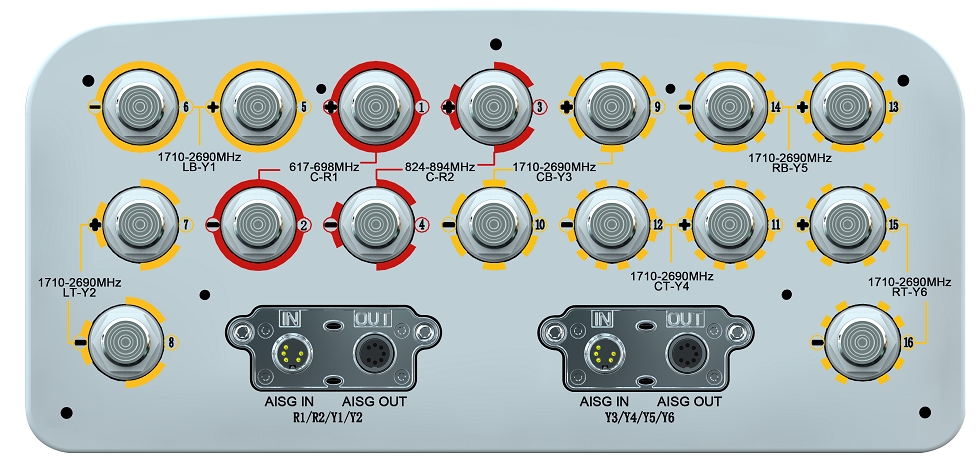

- 2 ports 617-698MHz and 2 ports 824-894MHz within diplexed 1 cross pol arrays in high band (671-894MHz) for independent tilt
