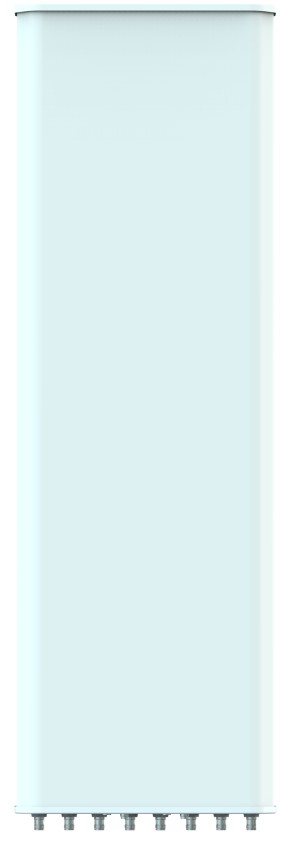

T3004L6R011
XXXXXXXPol 698~862MHz/880~960MHz/698~960MHz/1710~2690MHz×2/1710~2690MHz×2 65°/65°/65°/65°/65° 15.6/16.6/16.6/17.7/17.5dBi 2°~12°/2°~12°/2°~12°/2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna,with Combiner Integrated
Product Features

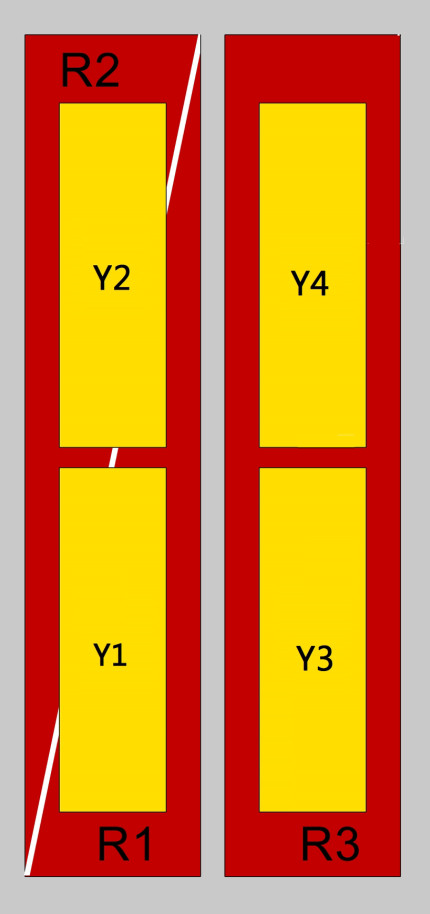

- Includes 2 cross polarization arrays(duplexed 6ports) for low band and 4 cross polarization arrays(8ports) for high band(1710-2690MHz)

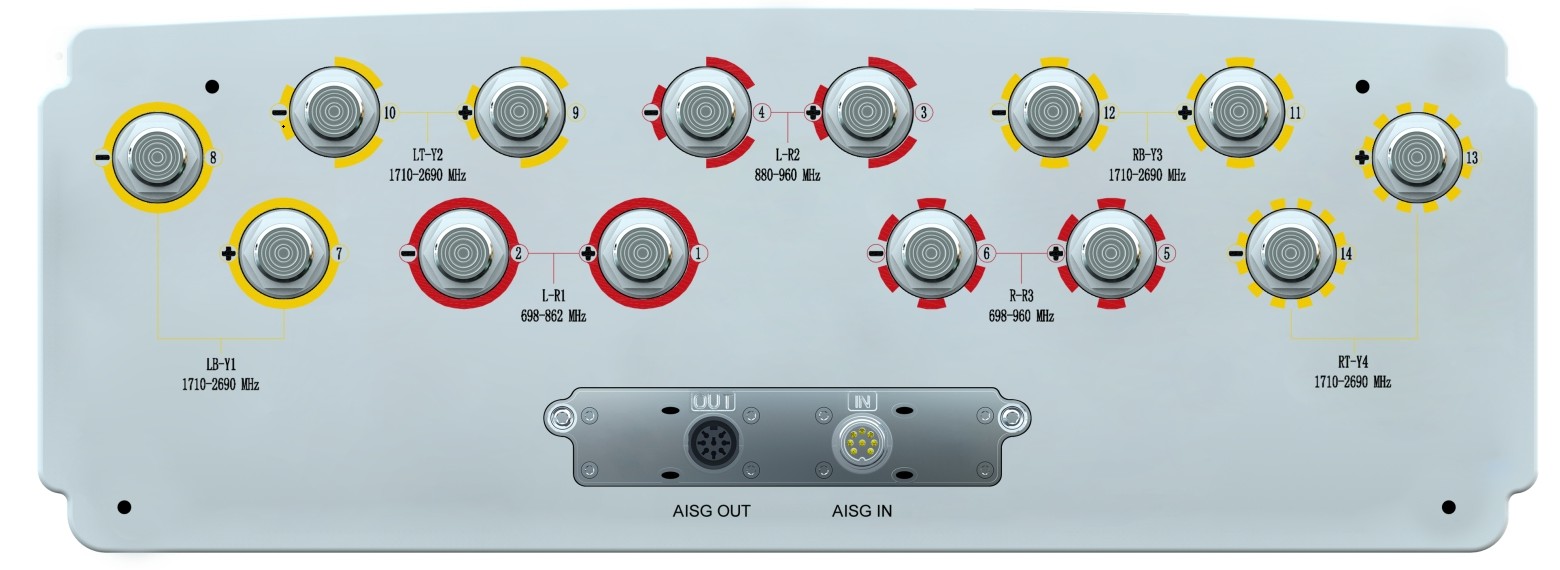

- Uses the new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
- Single integrated and field replaceable RCU provide up to 10RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP
- 2 ports 698-862MHz and 2 ports 880-960MHz within diplexed 1 cross pol arrays in low band (698-960MHz) for independent tilt
