T2004M6R022

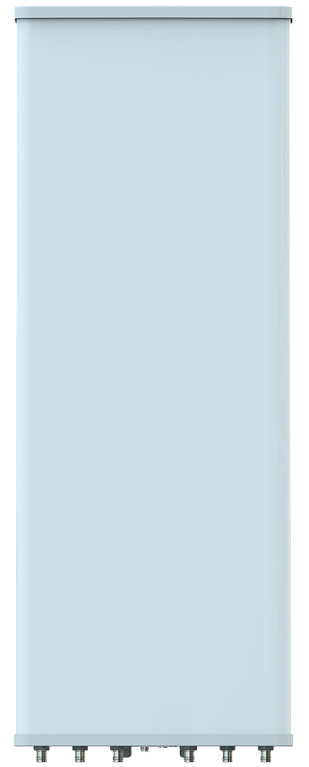

XXXXXXPol 698~960MHz×2/1710~2690MHz×2/1427~2690MHz×2 65°/65°/65° 15/18/17.5dBi 2°~12°/2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna
Product Features

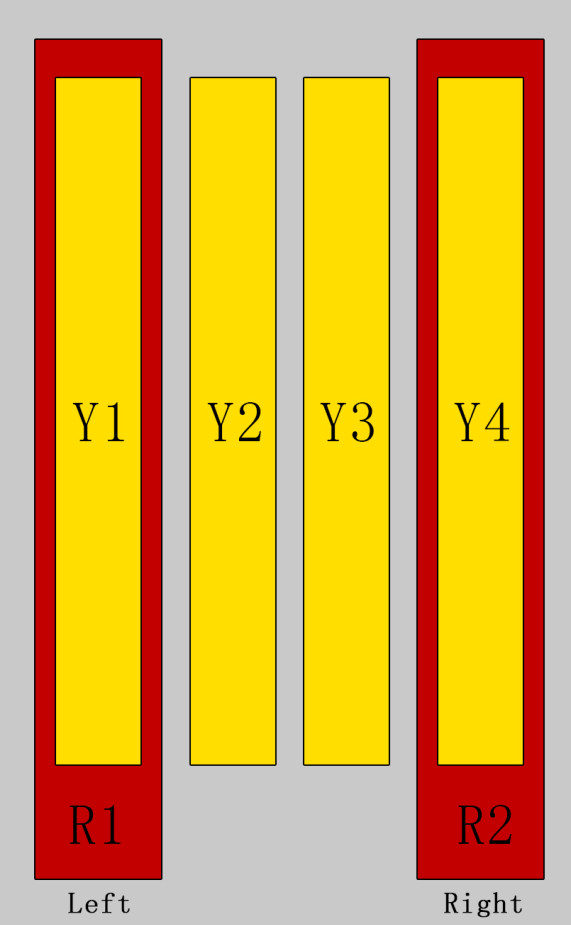

- Extended spectrum compliance for 1427-2690 MHz Includes 2 cross polarization arrays(4ports) for low band(694-960MHz) and 4 cross polarization arrays(8ports) for high band

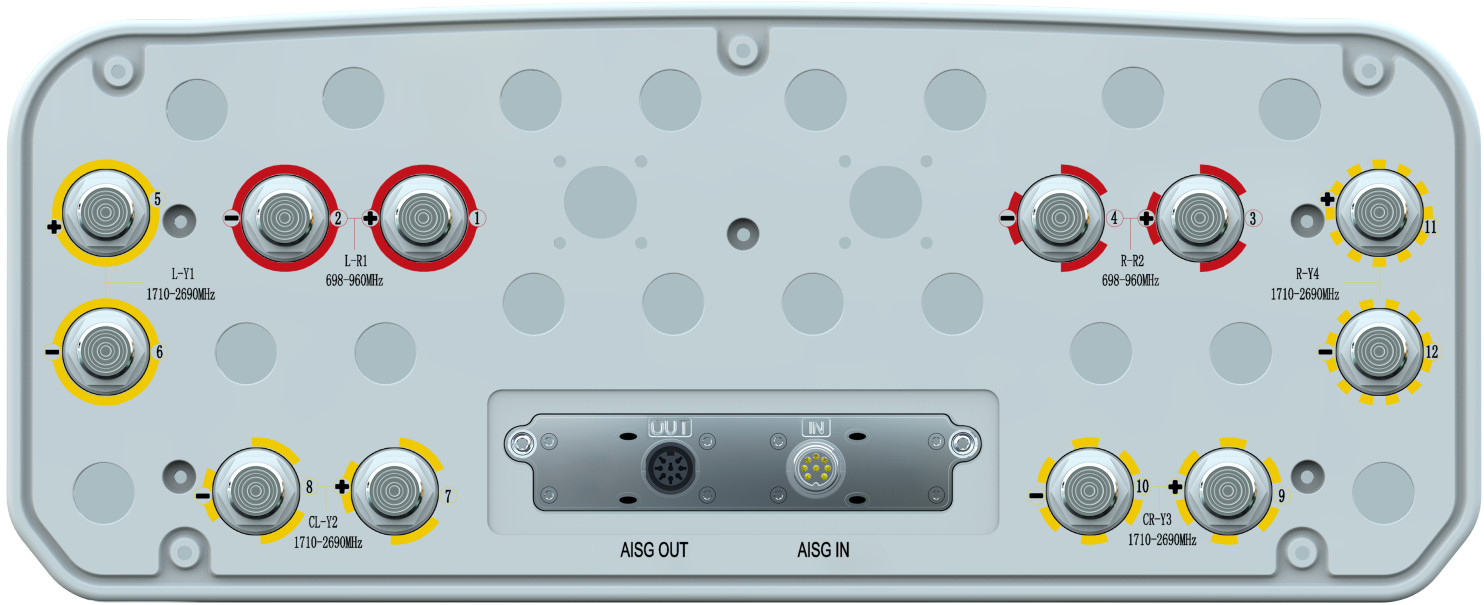

- Uses the new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
- Single integrated and field replaceable RCU provide up to 10RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP
