T2004L6R061

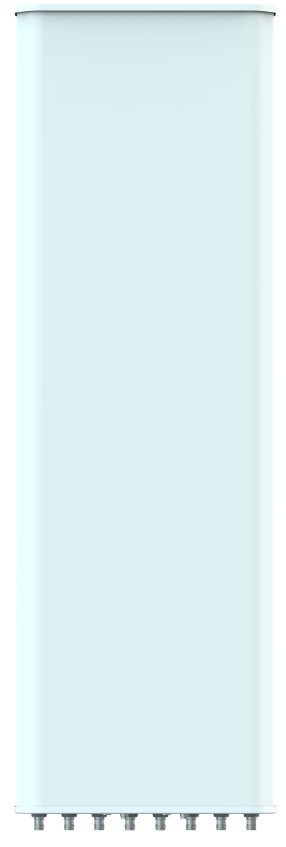

XXXXXXPol 698~862MHz/880~960MHz/1710~2690MHz×2/1710~2690MHz×2 65°/65°/65°/65° 16.2/16.5/17.5/17.3dBi 2°~12°/2°~12°/2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna
Product Features

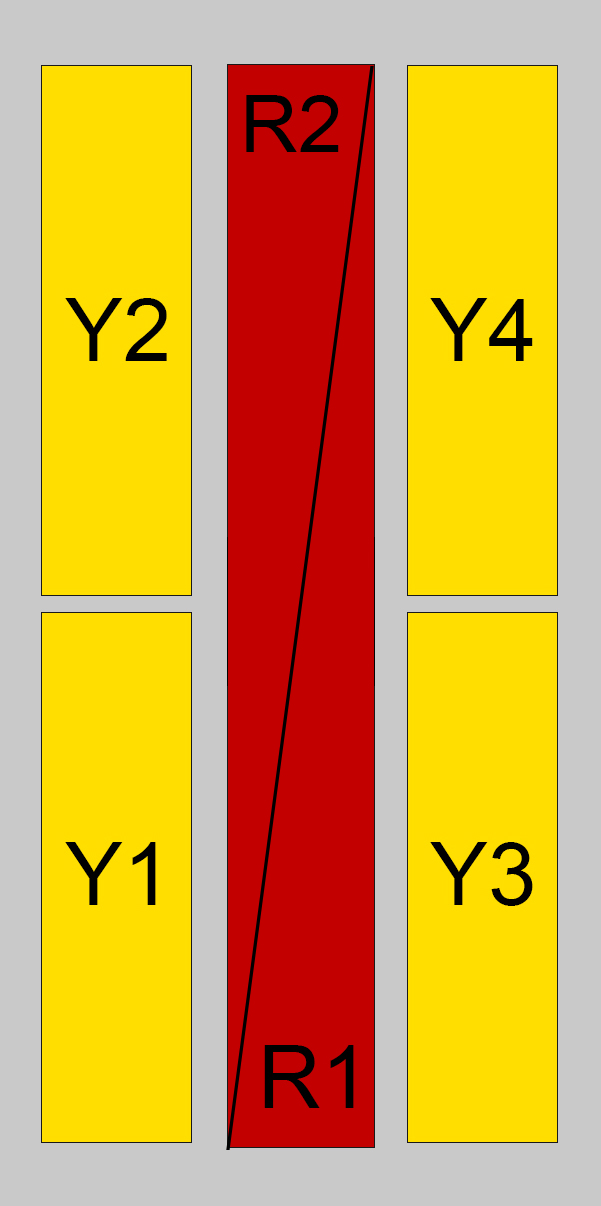

- Extended spectrum compliance for 1427-2690 MHz 2 cross polarization arrays(4ports) for high band(1710-2690MHz)and 2 cross polarization arrays(4 ports) for high band(1427-2690MHz)

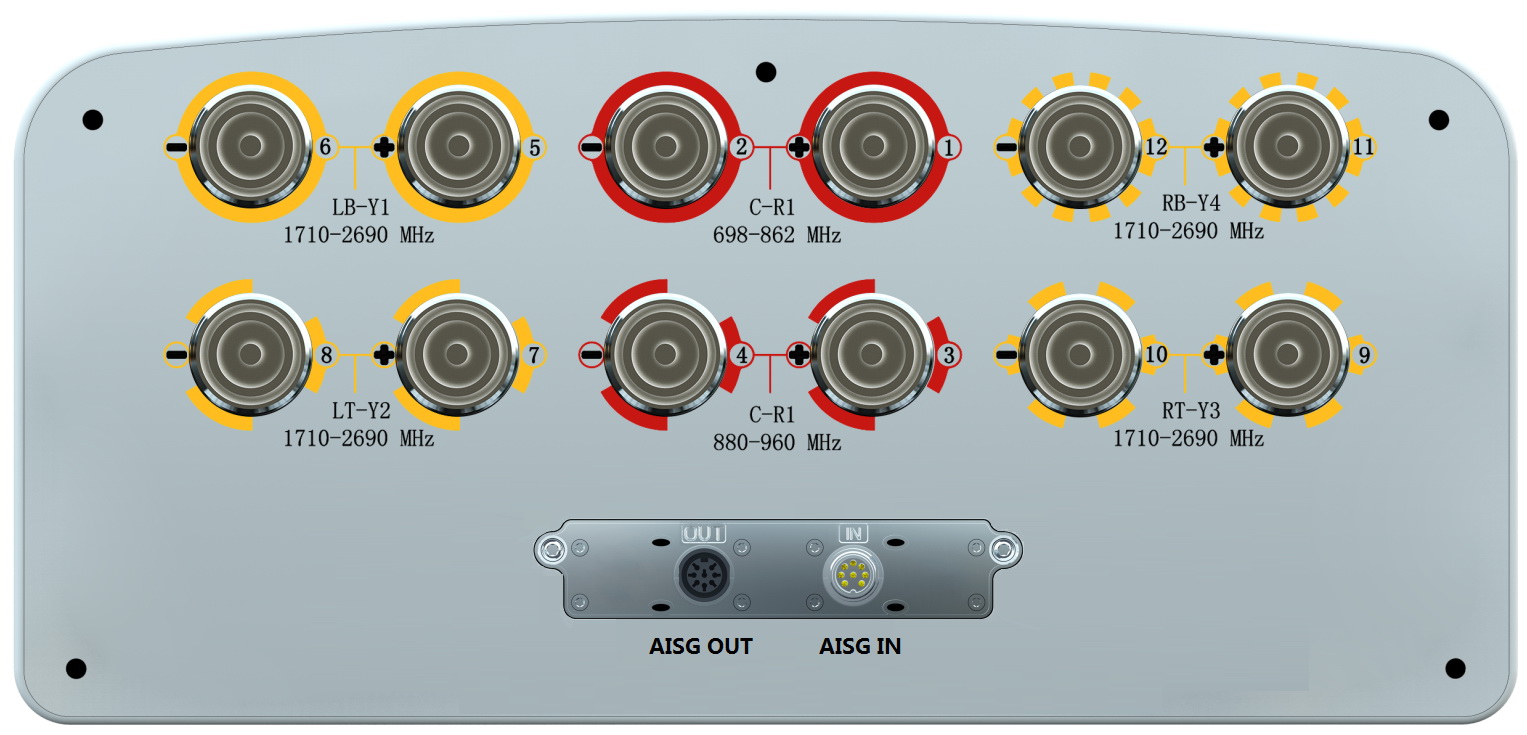

- Uses the new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
- Single integrated and field replaceable RCU provide up to 10 RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP
- 2 ports 698-862MHz and 2 ports 880-960MHz within diplexed 1 cross pol arrays in high band (698-960MHz) for independent tilt
