T1022M6R011

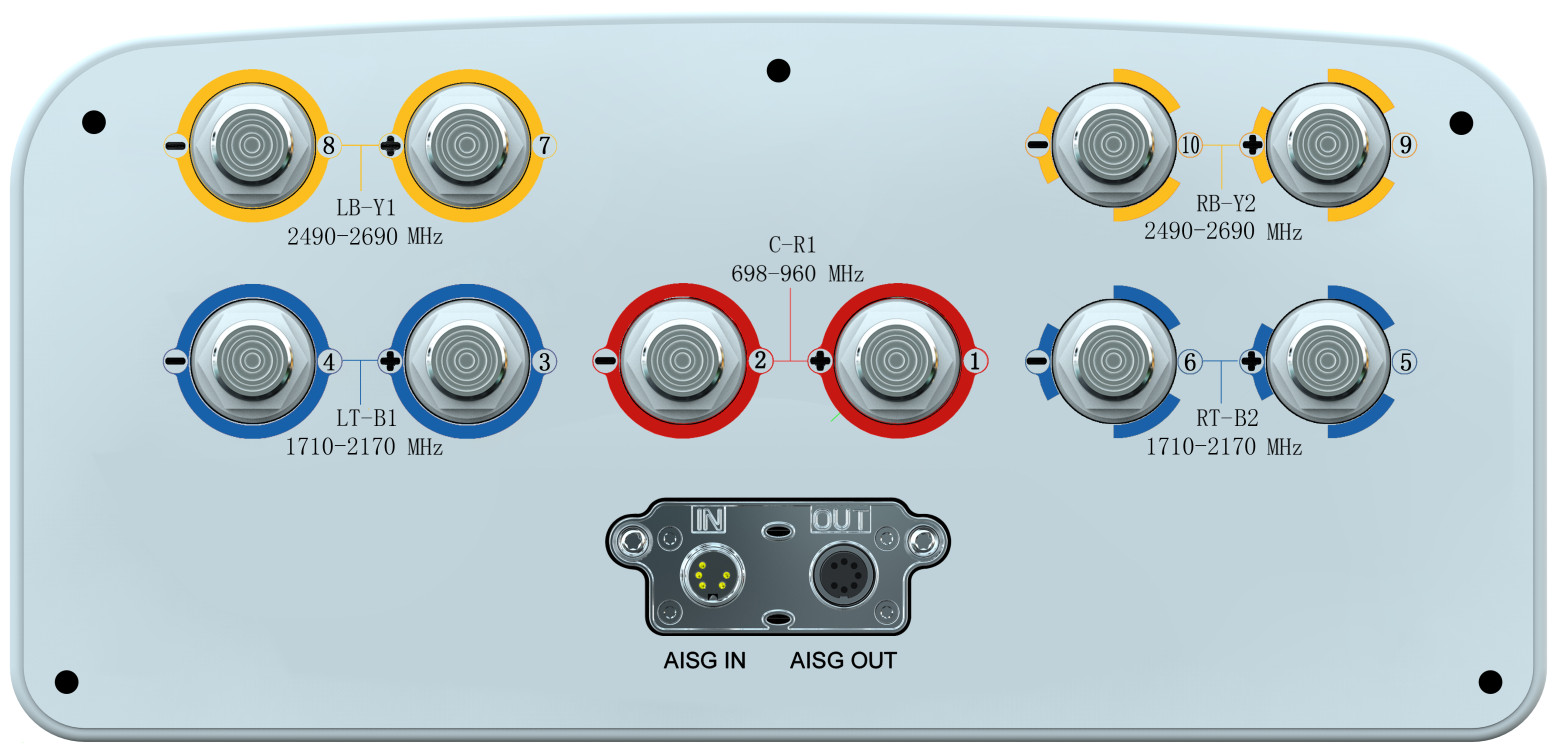

XXXXXPol 698~960MHz/1710~2170MHz×2/2490~2690MHz×2 65°/65°/65° 16/17.3/17.8dBi 0°~10°/2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna
Product Features

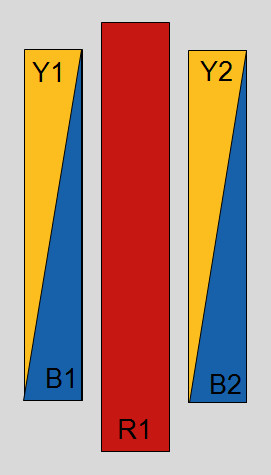

- Includes 1 cross polarization arrays(2ports) for low band(790-960MHz) Uses the new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
- Single integrated and field replaceable RCU provide up to 5 RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP
- 4 ports 1710-2170MHz and 4 ports 2490-2690MHz within diplexed 2 cross pol arrays in high band (1710-2690MHz) for independent tilt
- 2 cross polarization arrays in high band, duplexed, resulting in 4 ports 1710-2170MHz and 4 ports 2490-2690MHz.
