T2002L6R025
XXXXPol 698~862MHz/880~960MHz/1710~2690MHz×2 65°/65°/65° 16.5/17/18dBi 2°~12°/2° ~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna,with Combiner Integrated
Product Features

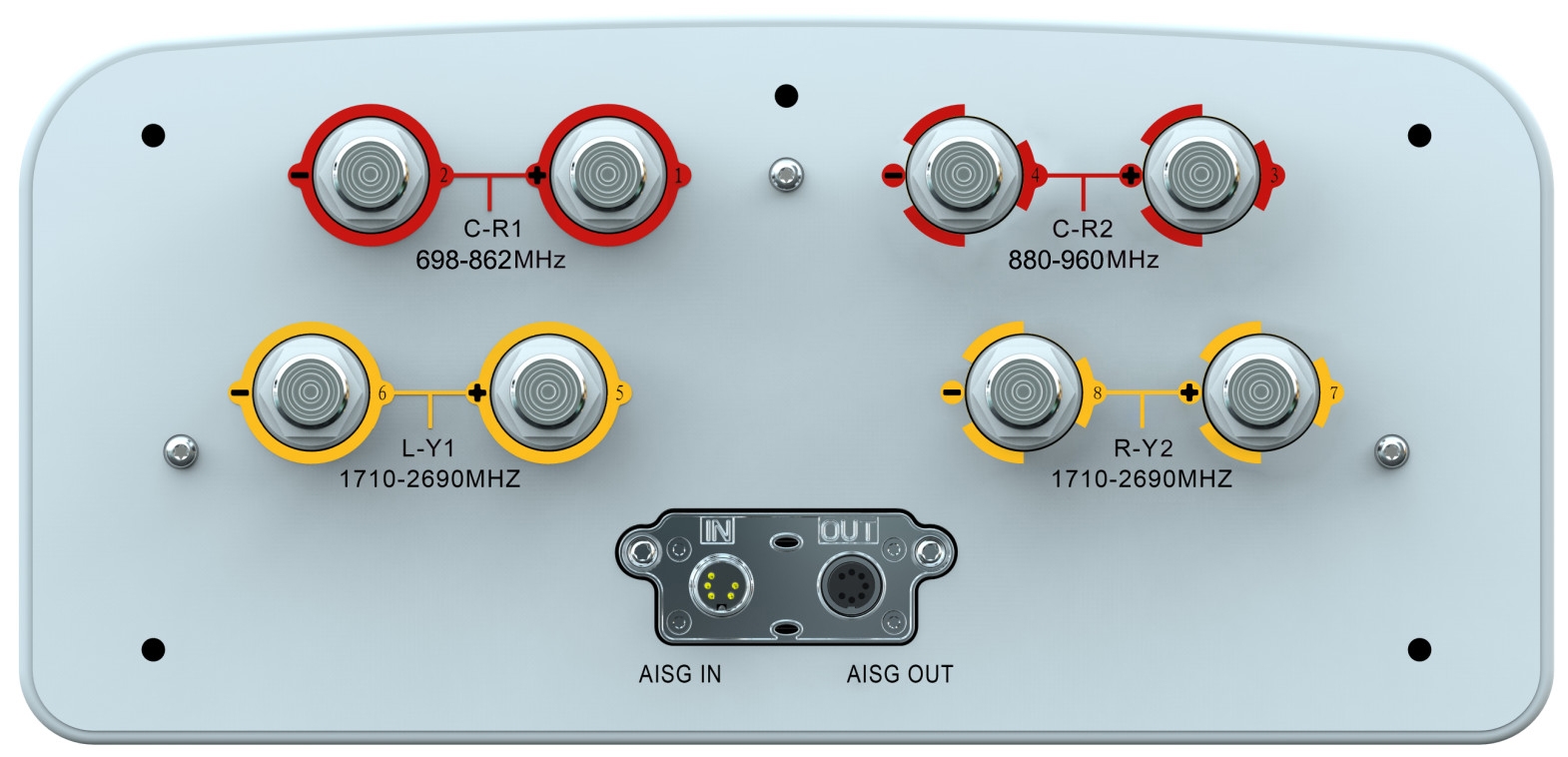

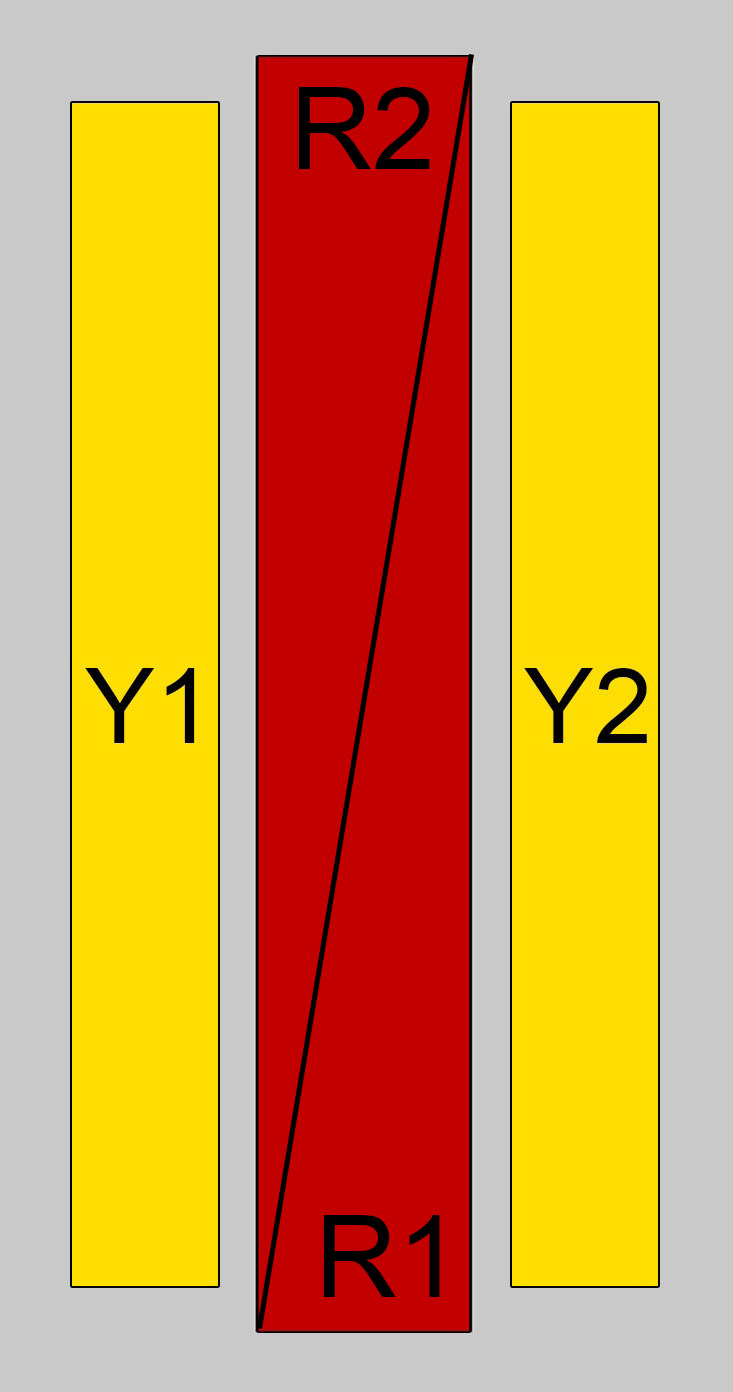

- Includes 1 cross polarization arrays(duplexed 4ports) and 2 cross polarization arrays(4ports) for high band(1710-2690MHz) Uses the new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector

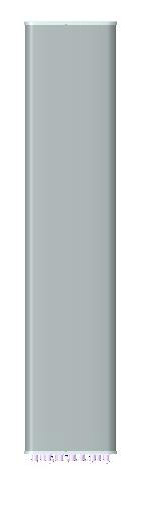

- Slim 355mm radome for low windload or limited tower space
- Single integrated and field replaceable RCU provide up to 5 RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP
- 2 ports 698-862MHz and 2 ports 880-960MHz within diplexed 1 cross pol arrays in high band (698-960MHz) for independent tilt
