T2026S6R011
TDD : XXXXPol 3300~3800MHz BCH 65° 17dBi 2~12° Beamforming
FDD : XXXXXXPol 698~960MHz×2/1710~2170MHz×2/ 2490~2690MHz×2 65°/65°/65° 14.1/16.8/17dBi 2°~12°/2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna
Product Features
- Extended spectrum compliance for 1427-2690 MHz

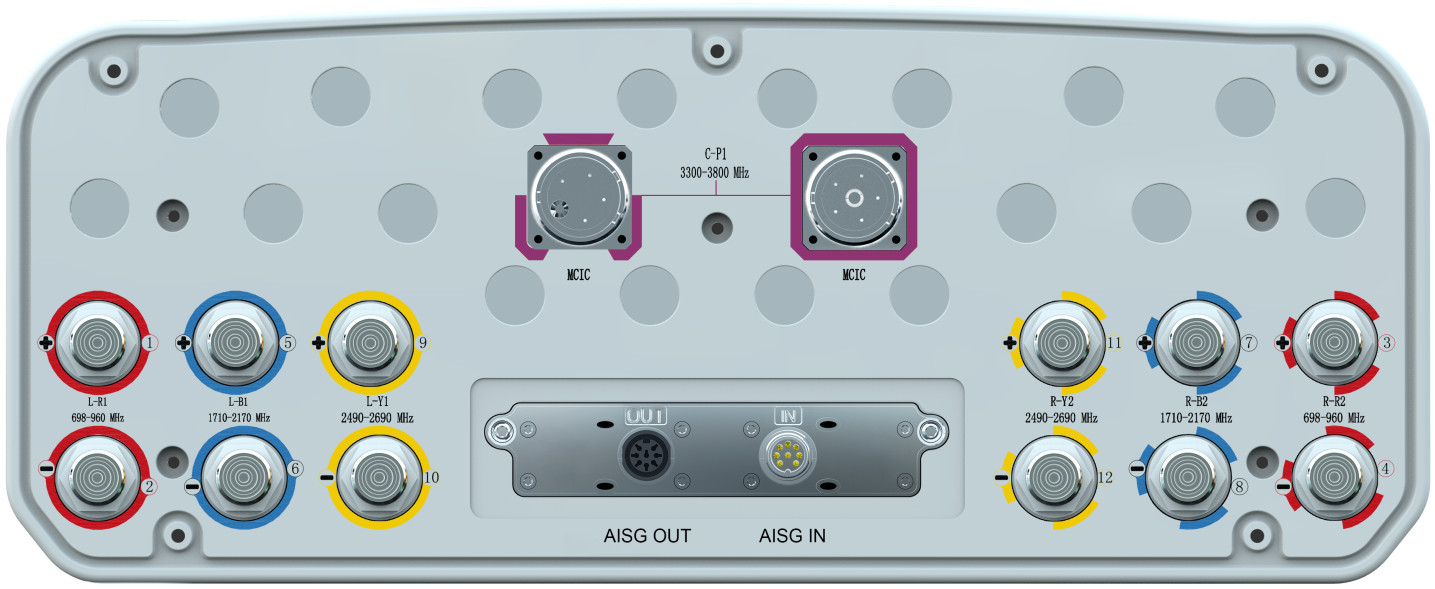

- Uses MQ4/MQ5 cluster connectors for the beam-forming array, including eight RF ports plus one calibration port
- Single integrated and field replaceable RCU provide up to 10 RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP

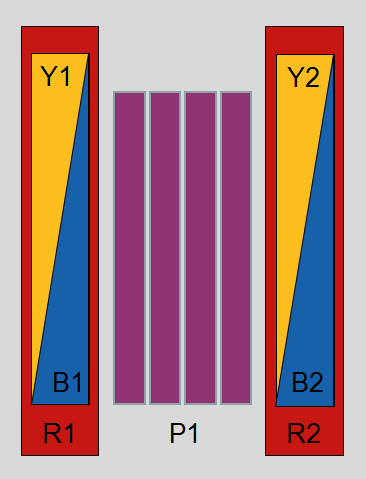

- 4 ports 1427-2170MHz and 4 ports 2490-2690MHz within diplexed 2 cross pol arrays in high band (1427-2690MHz) for independent tilt
- Hybrid FDD + TDD beamforming within a radome
