T2026M6R022
TDD : XXXXPol 2490~2690MHz/3300~3800MHz BCH 65°/65° 17/17dBi 2~12°/2~12° Beamforming
FDD : XXXXXXPol 698~960MHz×2/1427~2170MHzx2/ 2490~2690MHzx2 65°/65°/65° 15/17/17dBi 2~12°/2~12°/2~12° Integrated RCU (Remote Control Unit) Antenna
Product Features
- Extended spectrum compliance for 1427-2690 MHz

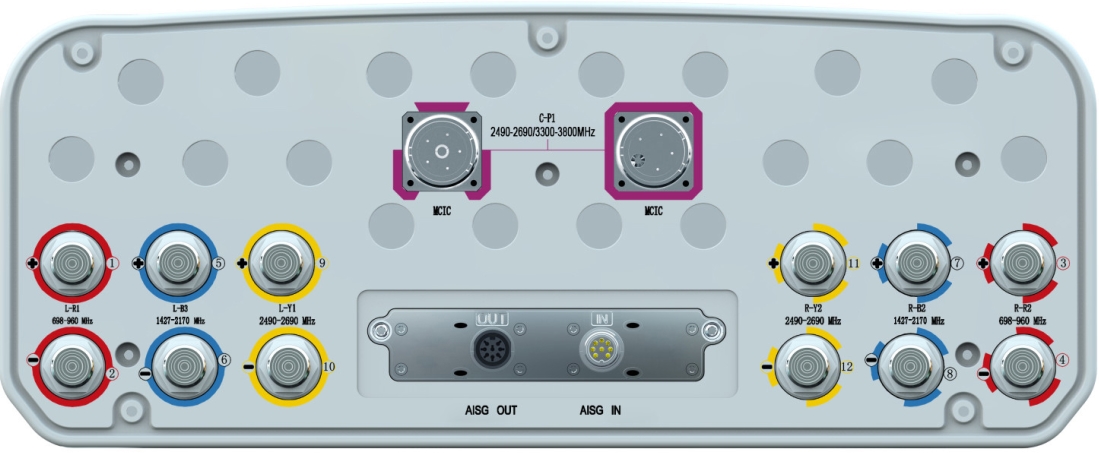

- Uses MQ4/MQ5 cluster connectors for the beam-forming array, including eight RF ports plus one calibration port
- Single integrated and field replaceable RCU provide up to 10 RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP

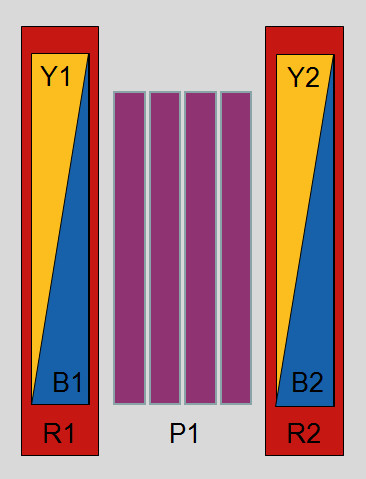

- 4 ports 1427-2170MHz and 4 ports 2490-2690MHz within diplexed 2 cross pol arrays in high band (1427-2690MHz) for independent tilt
- Hybrid FDD + TDD beamforming within a radome
