T2015S6R012
TDD : XXXXPol 2490~2690MHz/3300~3800MHz BCH 65°/65° 16.5/16.5dBi 2~12°/2~12° Beamforming
FDD : XXXXPol 698~862MHz/880~960MHz/ 1710~2170MHz/2490~2690MHz 65°/65°/65°/65° 13/13.5/16.5/17dBi 2~12°/2~12°/2~12°/2~12° Integrated and replaceable RCU (Remote Control Unit) Antenna
Product Features

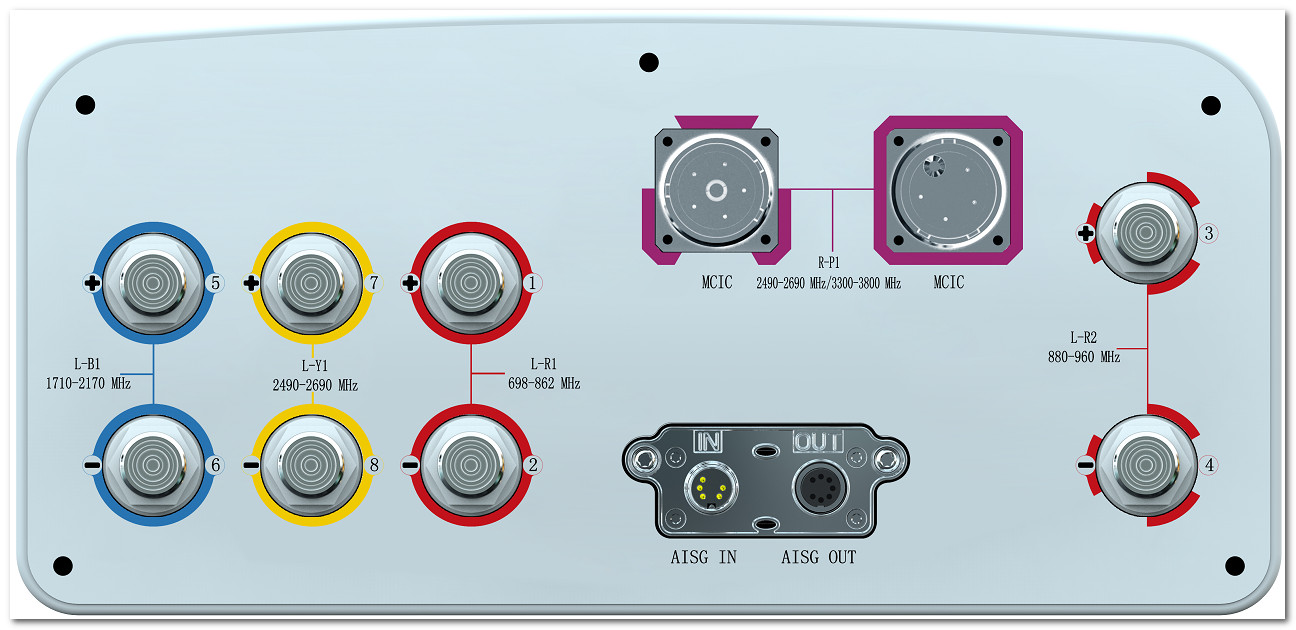

- Uses MQ4/MQ5 cluster connectors for the beam-forming array, including eight RF ports plus one calibration port
- Single integrated and field replaceable RCU provide up to 5 RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP
- 2 ports 698-862MHz and 2 ports 880-960MHz within diplexed 1 cross pol arrays in low band (698-960MHz) for independent tilt
- Hybrid FDD + TDD beamforming within a radome
