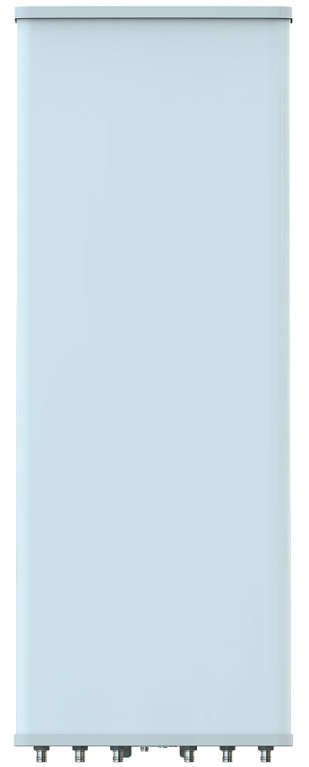

T2008M6R022
TDD : XXXXPol 3300~3800MHz BCH 65° 17 dBi 2~12° Beamforming
FDD :XXXXXXPol 698~960MHz×2/1710~2690MHz×2/ 1427~2690MHz×2 65°/65°/65° 16/16/16dBi 2°~12°/2°
~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna
Product Features

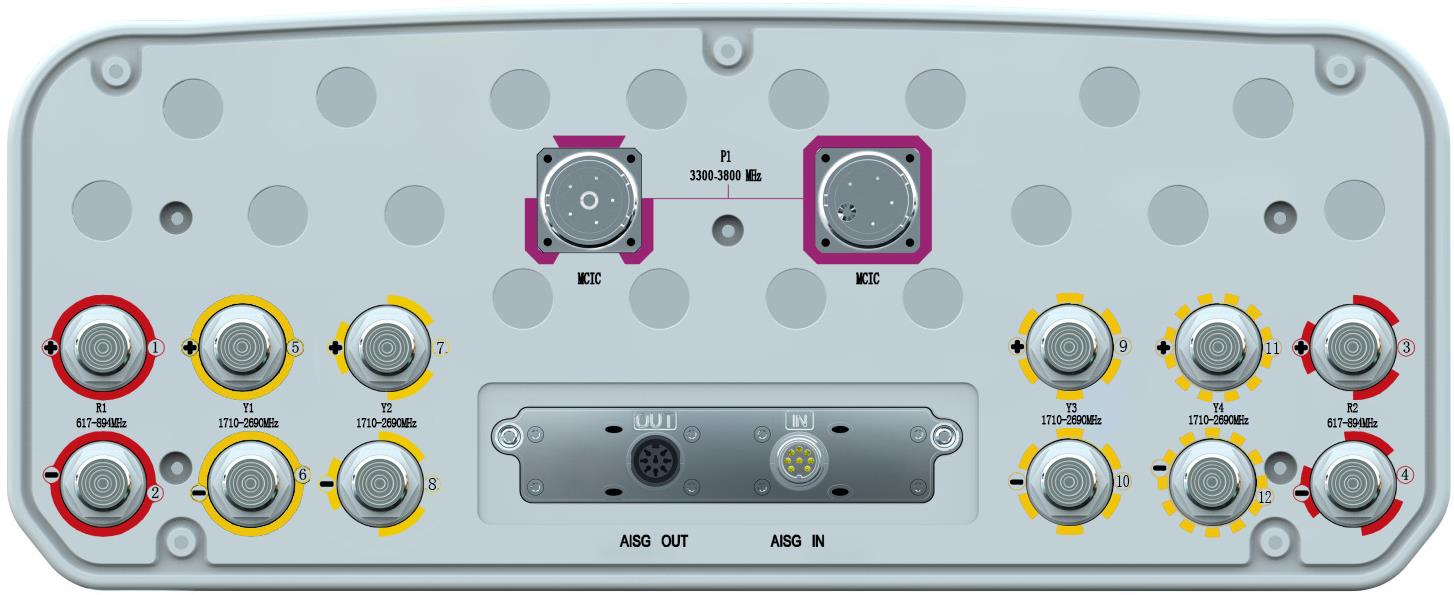

- Uses MQ4/MQ5 cluster connectors for the beam-forming array, including eight RF ports plus one calibration port
- Single integrated and field replaceable RCU provide up to 10 RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP
- Hybrid FDD + TDD beamforming within a radome
