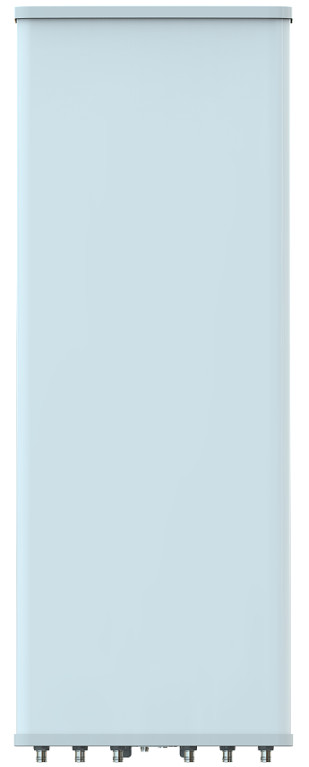

T2006S6R021
TDD: XXXXPol 3300~3800MHz 65° 17dBi 2~12°Beamforming

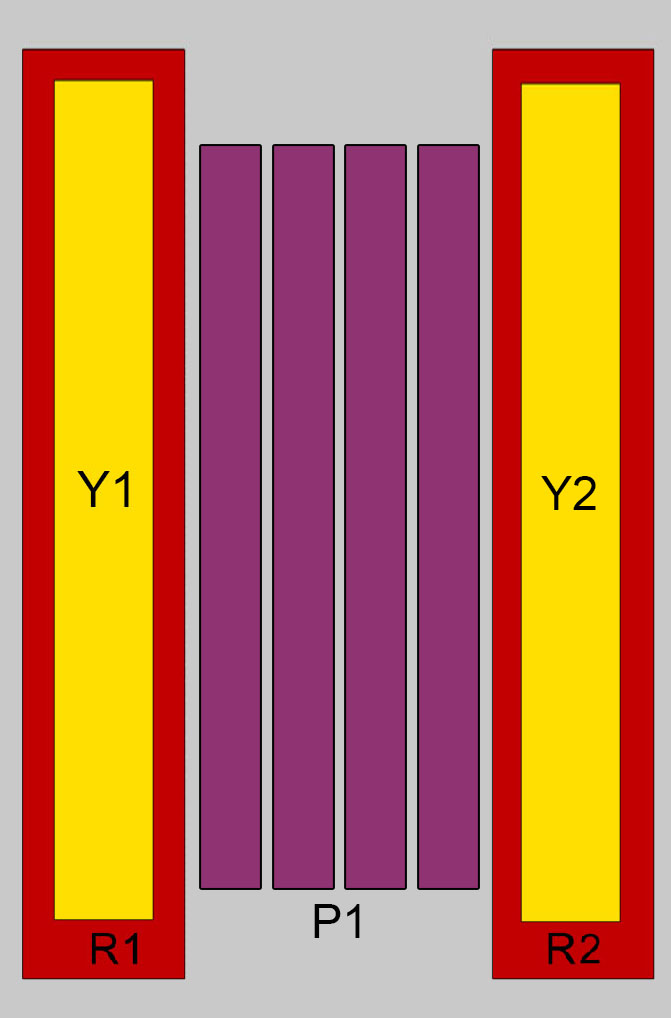

FDD: XXXXPol 698~960MHz×2/1710~2690MHz×2 65°/65° 14.5/18dBi 2°~12°/2°~12° Integrated and
replaceable RCU (Remote Control Unit) Antenna
Product Features

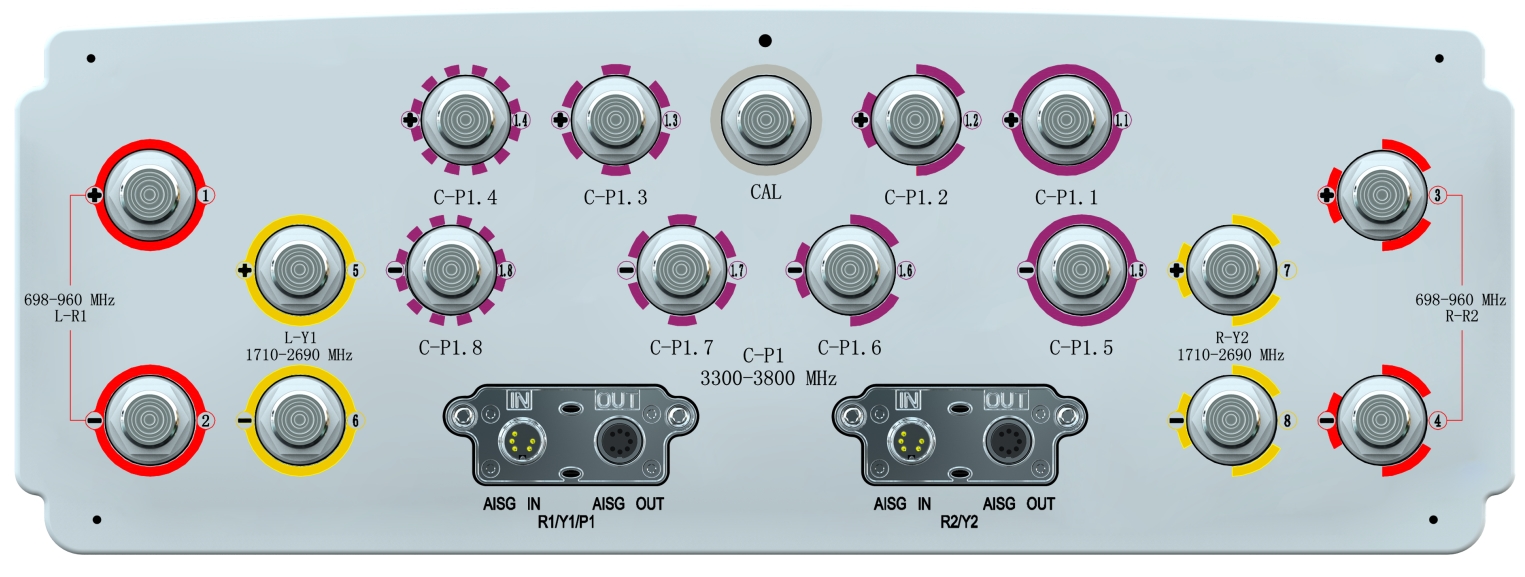

- Uses the new 4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector
- 2 integrated and field replaceable RCUs provide up to 10 RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP
- Supports both pre-set and re-configurable antenna sharing mapping for two separate OEM radios control internal RET by 2in 2out AISG port
- Hybrid FDD + TDD beamforming within a radome
