T200CL6R001

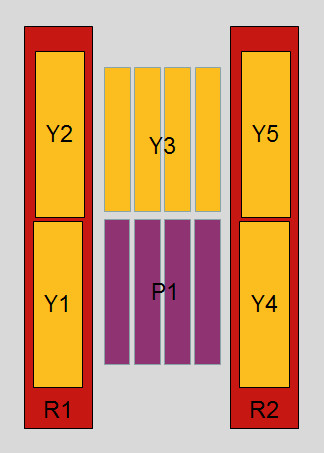

TDD : XXXXXXXXPol 2300~2690MHz×4/3300~3800MHz×4 BCH 65° 16/16.5dBi 2°~12°/2°~12 °Beamforming
FDD : XXXXXXPol 694~960MHz×2/1427~2690MHz×2 /1695~2690MHz×2 65°/65°/65° 16.5/17/17dBi 2°~12°/2° ~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna
Product Features

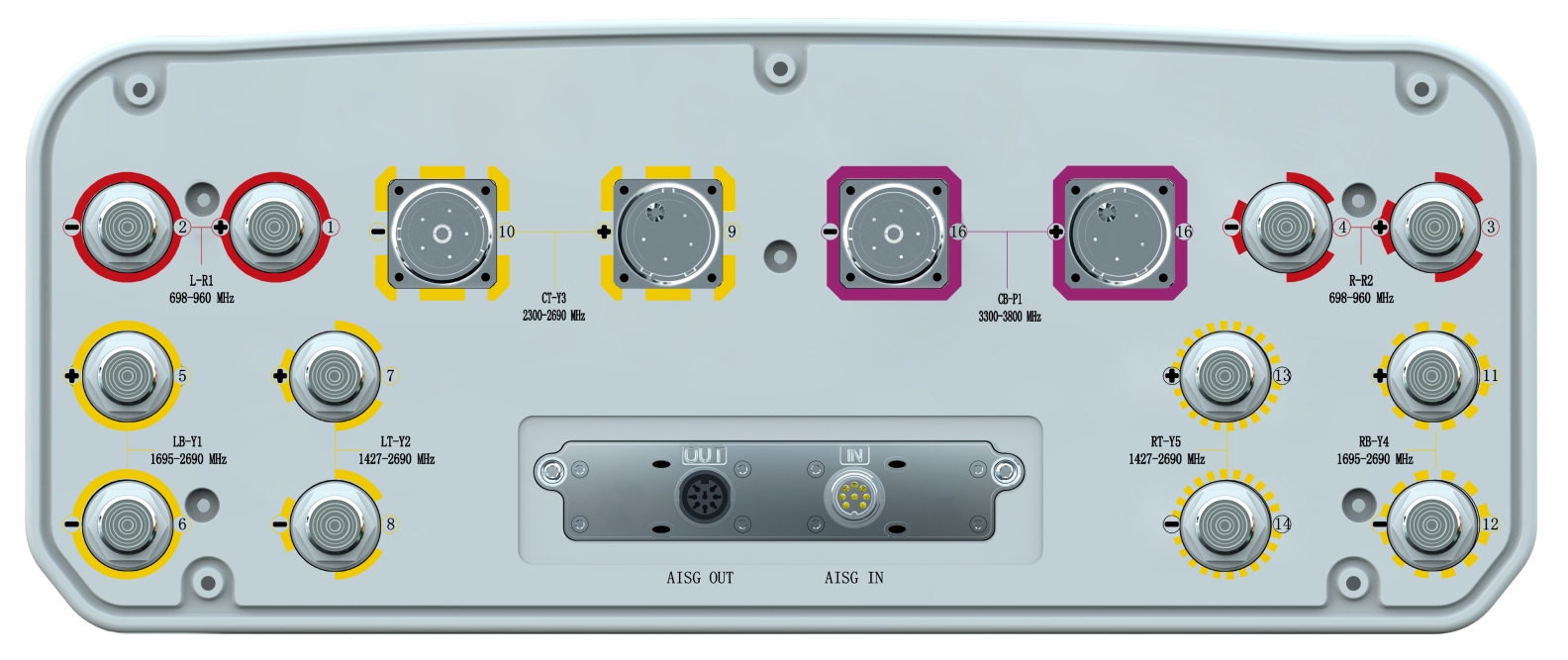

- Uses MQ4/MQ5 cluster connectors for the beam-forming array, including eight RF ports plus one calibration port
- Single integrated and field replaceable RCU provide up to 10 RETs for independent electrical tilt control for each array, Compliant with AISG/3GPP
- Hybrid FDD + TDD beamforming within a radome
